Truck Engine

1. EuroⅣ 4-Value Truck-Use Diesel Engine Low Emission: With electronically controlled high-pressure common rail technology, compliant with Euro IVemission regulation, the Euro Ⅲ product first introduced into market in 2006.

1. SC9DKE Electronically Controlled Diesel Engine The Euro III electronically controlled diesel engine is a volume production of Shanghai New Power Automotive Technology Company Limited., which uses the mature D114 diesel engine as the manufacturing basis.

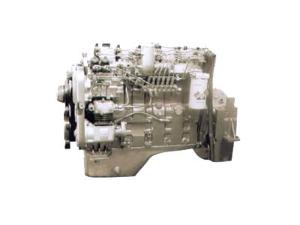

1. SC8DK Electronically Controlled Diesel Engine The specific fuel consumptionPer 100 km run is 5% ~ 10% down against the Euro Ⅱ product. The specification of the fuelused conforms to that available in China.

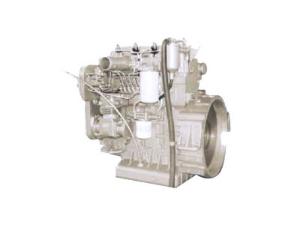

1. SC5DK Electronically Controlled Diesel Engine LOW NOISE: The engine noise is lower than 98 dB(A), and complete busnoise is under 82 bB(A)

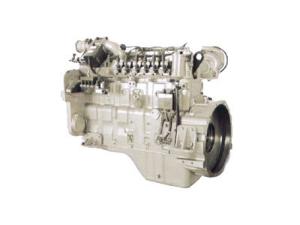

1. SC8DT Natural Gas Engine The engine control system can make adjustment automatically according to change of atmosphere, thus making the engine run without performance deterioration at attitude of 3000m and below.

1. SC5DT Natural Gas Engine The engine control system can make adjustment automatically according to change of atmosphere, thus making the engine run without performance deterioration at attitude of 3000m and below.

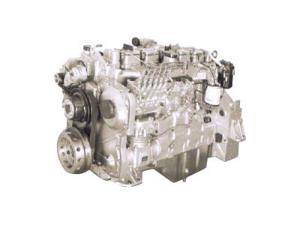

1. 6CL Diesel Engine for Trucks 6CL Diesel Engine for Trucks was developed by elongating the piston stroke of 6C diesel engine. It is ideal power for a new generation.

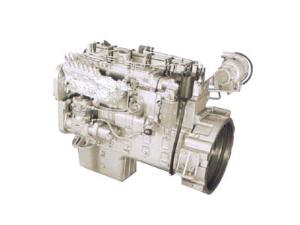

1. 6C Diesel Engine for Trucks 6C Diesel Engine for Trucks is specifically designed from the basis of D6114B engine according to truck application characteristics.

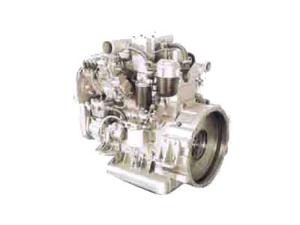

1. 4C Diesel Engine for Trucks 4C Diesel Engine for Trucks is a new product developed for trucks on the basis of D6114B engine with experience gained from application in the market development.

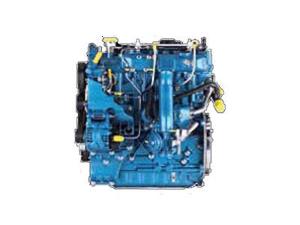

1. R Series Truck Diesel Engine The product is widely applied in various vehicles in great demand in the world including the middle and high end light duty truck, Chrysler, Land Rover, Cherokee and so on.

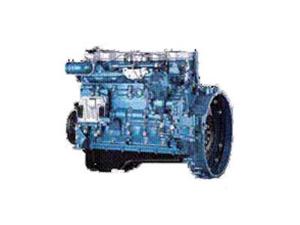

1. H Series Truck Diesel Engine
  - SC4H
  - SC7H

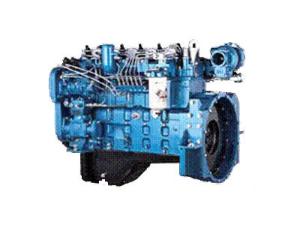

1. D Series Truck Diesel Engine
  - SC5DK
  - SC8DK
  - SC9DK

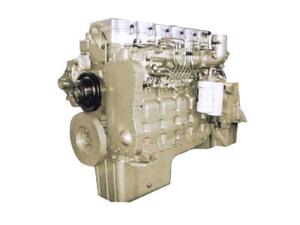

  - SC9DF

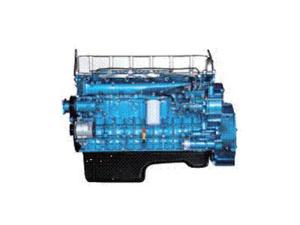

1. E Series Truck Diesel Engine
  - SC10E
  - SC12E

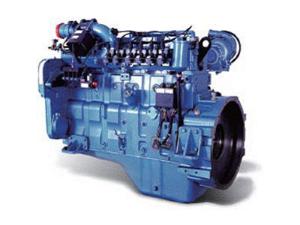

1. Truck Natural Gas Engine
  - SC6HT
  - SC5DT
  - SC8DT
  - SC9DT

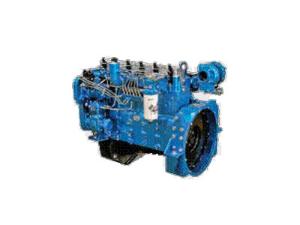

1. Truck EGR (Exhaust Gas Recirculation) Engine
  - SC9DK (EGR)
  - SC10E (EGR)

Truck Engine Types

Type	Engine series	Model	Displacement	Number ofcylinder	Number of valve	Emissions	Rated power/ Rated rotating speed (kW/rpm)	Maximum torque/Maximum rotating speed (N.m/rpm)	Fuel injection system
High pressure common rail diesel engine	R series	SC25R	2.5	4	4	EURO III	80~100/3000~3800	280~330/2000	Bosch
	R series	SC28R	2.8	4	4	EURO III	90~110/3000~3600	280~360/2000	Bosch
	H series	SC4H	4.3	4	4	EURO III	89~132/2300~2500	400~660/1900	Denso
	H series	SC7H	6.5	6	4	EURO III	147~192/2300~2500	750~1000/1200~1800	Denso
	D series	SC5DK	5.3	4	2	EURO III	118~162/2300	590~840/1400	Denso
		SC8DK	8.3	6	2		140~184/2200	750~1000/1400
		SC9DK	8.8	6	2		177~228/2200	970~1250/1400
		SC9DF	8.8	6	4	EURO III	158~251/2200	970~1500/1400
	E series	SC10E	10.4	6	4		213~294/1900	1300~1900/1300	Bosch
	E series	SC12E	11.8	6	4		283~353/1900	1800~2200/1300	Bosch
EGR engine	E series	SC9DK(EGR)	8.8	6	2	EURO III	177~228/2200	922~1250/1400	Mechanical pump
EGR engine	E series	SC10E(EGR)	10.4	6	4	EURO III	213~309/1900	1190~1800/1400	Mechanical pump
Natural gas engine	DT series	SC5DT	5.3	4	2	EURO III	118~132/2300	580~650/1400~1600	Woodward/E-control
		SC8DT	8.3	6	2		155~184/2200	800~920/1400
		SC9DT	8.8	6	2		206~235/2200	1100~1200/1400
	HT series	SC6HT	5.9	6	2		125~155/2600	580~650/1600
