Enclosure Design

SDEC power systems set the industry standard for generator enclosures with its own complete line of enclosure products. Enclosures for weather proof, sound proof and mobile type are factory designed and manufactured to provide exceptional quality and value second to none. Our enclosure line provides a clean appearance with a completely enclosed exhaust system. The baseframe-mounted design allows a completely assembled package for streamlined site placements. For a cleaner appearance, an optional drop-in silencer package is available.

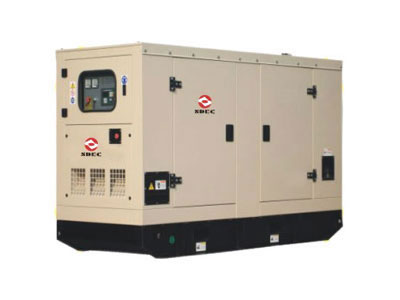

Sound proof type
Noise deduction in compliance with ISO3744
Superb ventilation system and anti-thermal radiation facilities ensuring proper ambient temperature

Base fuel tank of an extraordinary 8 hour capacity. Larger capacity base fuel tank is available
Adoption of special noise reduction material
Effective anti-vibration devices
Observation window and emergency stop button on the outside for easier monitoring and operation
Optional outdoor soundproof Generators
Mobile type
All the features of soundproof type
Suitable for field and mobile operation
Easy maintenance and repair
Easy to fix and balance due traction system on wheel chassis
Warning light, turn light and fog light on there rear to ensure safe driving

Product Reference Specifications
Soundproof Canopy Model Dimension(mm)
L W H
Soundproof Canopy Model Dimension(mm)
L W H
K1700 1700 750 1230 H2600 2600 1000 1550
K2000 2000 900 1300 H3000 3000 1080 1650
K2350 2350 1100 1745 H3200 3200 1080 1650
K2600 2600 1100 1850 H3500 3500 1130 1700
K3050 3050 1100 1850 H4300 4300 1400 2150
K3350 3350 1100 1850 H4600 4600 1400 2150
K3900 3900 1100 1850 H5200 5200 1600 2450
K4920 4920 1300 2350 H5600 5600 1600 2600
K5320 5320 1600 2350
K5800 5800 1600 2350
