4C Diesel Engine for Trucks

4C Diesel Engine for Trucks

4C Diesel Engine for Trucks (Truck Engine)

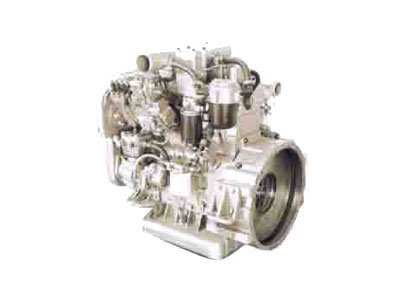

4C Diesel Engine for Trucks is a new product developed for trucks on the basis of D6114B engine with experience gained from application in the market development. The engine has advantages of compact, good reliability and low fuel consumption.
WIDE POWER RANGE
100 ~ 147kw, the high power end, is ever produced so far by a domestic 4-cylinder engine.
LARGE TORQUE
Maximum torque is 720 N.m.
GOOD RELIABILITY
Adoption of forged steel crankshaft and optimization of component structures the engine lifetime.
EASY MAINTENANCE
Customer-orientated design, compact and easier for packaging.
LOW NOISE
A removable balancing device balancing 2nd order reciprocal inertia farce is incorporated to improve vibrating transmission characteristics, which effectively reduces vibration and noise of the engine.

4C DIESEL ENGINE SPECIFICATIONS
Model Unit Euro Ⅱ
4C180-2 4C180.1-2 4C200 4C210
Type 4-Cylinder,Water Cooled ,DI
Bore×Stroke mm×mm 114×130
Total Displacement L 5.3
Speed/Power@Rate Conditon kw/r/min 132/2300 132/2300 147/2300 155/2300
Fuel Consumption Rate@Rated Condition
 g/kw.h ≤228 ≤225
Smoke@Rated Conditon FSN ≤1.0
Max.Torque/Speed N.m/r/min 5820/1300~
1600		 660/1300~
1500		 720/1300~
1500		 770/1300~
1500
Torque Back-up % 20
Fuel Consumption@Max.Torque g/kw.h ≤210 ≤205
Smoke@Max.Torque FSN ≤0.5
Oil/Fuel Consumption Ratio % ≤0.3
Noise Db(A) ≤98
Overall Dimension mm 925(length)×900(width)×794(height)
Weight
 kg 540
