6C Diesel Engine for Trucks

6C Diesel Engine for Trucks

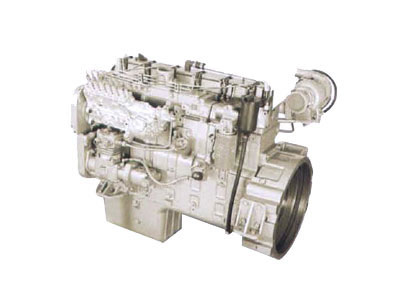

6C Diesel Engine for Trucks (Truck Engine)
6C Diesel Engine for Trucks is specifically designed from the basis of D6114B engine according to truck application characteristics.
PERFORMANCE OPTIMIZATION
Large low-end torque and wide range of maximum torque from 1000rpm to 1800rpm
LOW FUEL CONSUMPTION
Performance optimization makes truck operates with low fuel consumption within whole speed range.
EASY MAINTENANCE
Integrating design, compact, easy maintenance.
LOW EMISSION
The Euro Ⅱ version engine has passed national certification of EuroⅡ. The Euro Ⅲ version started volume production in 2005 .

SPECIFICATIONS of 6C Diesel Engine
Model Unit Euro Ⅱ
6C230 6C240 6C260 6C280
Type TCI
Bore×Stroke mm×mm 114×135
Total Displacement L 8.3
Speed/Power@Rate Conditon kw/r/min 170/2200 177/2200 192/2200 206/2200
Fuel Consumption Rate@Rated Condition g/kw.h ≤225
Smoke@Rated Conditon FSN ≤1.0
Max.Torque/Speed N.m/r/min 830/1200
~1600		 922/1200
~1600		 1000/1200
~1600		 1112/1200
~1600
Torque Back-up % 25 25 20 25
Fuel Consumption@Max.Torque g/kw.h ≤199 ≤198
Smoke@Max.Torque FSN ≤0.5
Oil/Fuel Consumption Ratio % ≤0.3
Noise Db(A) ≤98
Overall Dimension mm 1363(Length) ×925(With) ×794(Height)
Weight kg 640
