5.3L Natural Gas Engine

5.3L Natural Gas Engine

Specifications of 5.3L Natural Gas Engine
SC5DT160/180Q3   Euro Ⅲ
4CT160/180   Euro Ⅱ
Suitable Applications: medium﹣sized bus and special delivery vehicles
Horsepower Rating: 160~200PS

Technical Parameters of 5.3L Natural Gas Engine
Euro Ⅲ Euro Ⅱ
Model Unit SC5DT160Q3 SC5DT180Q3 4CT160 4CT180
Fuel Natural gas CNG
Type 4~Cylinder 4 Stroke, Water cooled
Aspiration Cold turbocharger/TCI
Bore×Stroke mm×mm 114×130
Total Displacement L 5.3
Compression Ratio 11:1
Rated Power/ Rated Speed Kw/r/min 118/2300 132/2300 118/2300 132/2300
BMEP@Rated Condition kPa 1218 1297 1218 1297
Maximum Thermo Efficiency % 37
Oil Consumption Rate g/kW.h ≦0.3
Maximum Torque/Speed N.m/r/min 580/1500 650/1400~1600 580/1500 650/1400~1600
Noise dB(A) ≦98
Overhaul Interval km ≧400000

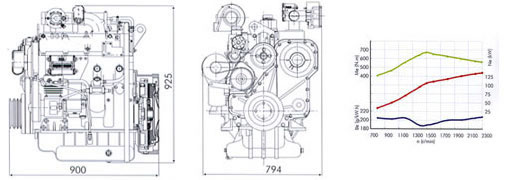

Overall Dimension mm 900(Length)×794(Width)×925(Height)
Weight kg 540

SDEC has been engaged in the production of engines since 1947. As an experienced manufacturer of Natural gas engines and diesel engines in China, we provide high quality products at competitive prices. Due to our consistent quality, we have obtained ISO9001, QS9000 and TS16949 certification. We are located in Shanghai. This location gives us access to convenient transportation facilities by sea, land, and air.
