SME Diesel Generator (550 - 2000KVA)

SME Diesel Generator (550 - 2000KVA)

SME diesel generators produced by SDEC are powered by R series engines. These engines are characterized by their high power, large torque, fuel efficiency, and minimal noise output. Thanks to their maintenance-free battery ignition system, the generator sets can be started simply by filling the fuel and coolant tanks and flipping the power switch. The R series generator meets China IV and China V emissions regulations for eco-friendly operation.

The Main Technical Parameters:
Gen-set model Gen-set Rated output Gen-set Standby output Engine model Type of governor Type of interface Generator model Rated current Dimensions mm Weight kg
D500MG 500 550 S6R2-PTA-C electric SAE0/18 MP-500-4 902 3400*1615*2090 4880
D500MS 500 550 S6R2-PTA-C electric SAE0/18 KF-W4.D-500 902 3400*1615*2090 5025
D540MG 540 594 S6R2-PTA-C electric SAE0/18 MX-560-4 974 3745*1615*2090 5280
D540MS 540 594 S6R2-PTA-C electric SAE0/18 KF-W4.D-550 974 3460*1615*2090 5335
D600MG 600 660 S6R2-PTAA-C electric SAE0/18 MX-600-4 1083 3975*1530*2025 6040
D600MS 600 660 S6R2-PTAA-C electric SAE0/18 KF-W4.D-600 1083 4030*1530*2025 6365
D800MG 800 880 S12H-PTA electric SAE0/18 MX-850-4 1443 4650*1660*2070 8150
D800MS 800 880 S12H-PTA electric SAE0/18 KF-W4.D-800 1443 4650*1660*2070 8180
D1000MG 1000 1100 S12R-PTA-C electric SAE00/21 MX-1030-4 1804 4590*2200*2515 10800
D1000MS 1000 1100 S12R-PTA-C electric SAE00/21 KF-W4.D-1000 1804 4635*2200*2515 10540
D1100MG 1100 1210 S12R-PTA2-C electric SAE00/21 MX-1240-4 1985 4590*2200*2515 11000
D1100MS 1100 1210 S12R-PTA2-C electric SAE00/21 KF-W4.D-1120 1985 4635*2200*2515 10865
D1200MG 1200 1320 S12R-PTAA2-C electric SAE00/21 MX-1240-4 2165 5110*2205*2740 11300
D1200MS 1200 1320 S12R-PTAA2-C electric SAE00/21 KF-W4.D-1200 2165 5110*2205*2740 11270
D1360MG 1360 1496 S16R-PTA-C electric SAE00/21 MX-1360-4 2454 5520*2200*2605 13000
D1360MS 1360 1496 S16R-PTA-C electric SAE00/21 KF-W4.D-1360 2454 5240*2200*2605 12780
D1500MG 1500 1650 S16R-PTA2-C electric SAE00/21 MX-1540-4 2706 5540*2210*2930 15500
D1500MS 1500 1650 S16R-PTA2-C electric SAE00/21 KF-W4.D-1500 2706 5440*2210*2930 15550
D1600MG 1600 1760 S16R-PTAA2-C electric SAE00/21 MX-1600-4 2887 5870*2210*2930 17500
D1600MS 1600 1760 S16R-PTAA2-C electric SAE00/21 KF-W4.D-1670 2887 5760*2210*2930 17600
D2000MGE 2000 S16R2-PTAW electric SAE00/21 MXL-2000-4 3280 6380*2210*3450 19800
D2000MSE 2000 S16R2-PTAW electric SAE00/21 KF-W4.D-2000 3280 6300*2210*3450 19700

*The above parameters are for reference only, subject to change without notice.

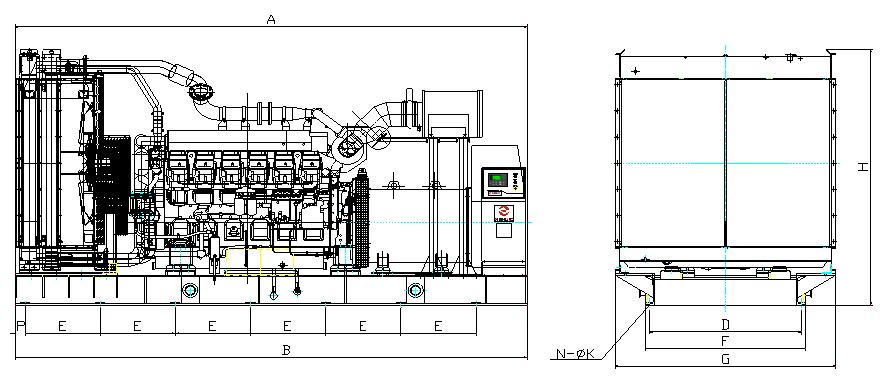

Table of Outline and Dimensions:
Model A B D E F H G P N K
D500MG 3400 3400 1090 750 1170 2090 1615 300 10 24
D500MS 3400 3400 1090 750 1170 2090 1615 300 10 24
D540MG 3745 3745 1090 750 1170 2090 1615 300 10 24
D540MS 3460 3460 1090 750 1170 2090 1615 300 10 24
D600MG 3975 3975 1090 800 1170 2025 1530 200 10 24
D600MS 4030 4030 1090 800 1170 2025 1530 200 10 24
D800MG 4650 4650 1250 750 1350 2070 1660 350 12 24
D800MS 4650 4650 1250 750 1350 2070 1660 350 12 24
D1000MG 4590 4590 1120 800 1200 2515 2200 145 12 24
D1000MS 4635 4635 1120 800 1200 2515 2200 145 12 24
D1100MG 4590 4590 1120 800 1200 2515 2200 145 12 24
D1100MS 4635 4635 1120 800 1200 2515 2200 145 12 24
D1200MG 5110 5110 1520 750 1600 2740 2205 100 14 24
D1200MS 5110 5110 1520 750 1600 2740 2205 100 14 24
D1360MG 5520 5520 1500 800 1600 2605 2200 400 14 24
D1360MS 5240 5240 1500 800 1600 2605 2200 320 14 24
D1500MG 5540 5540 1500 850 1600 2930 2210 200 14 24
D1500MS 5440 5440 1500 850 1600 2930 2210 200 14 24
D1600MG 5870 5870 1500 850 1600 2930 2210 550 14 24
D1600MS 5760 5760 1500 850 1600 2930 2210 450 14 24
D2000MGE 6380 6380 1500 850 1600 3450 2210 550 14 24
D2000MSE 6300 6300 1500 850 1600 3450 2210 550 14 24
The Main Electrical Performance Indicators:
Voltage Frequency
Steady-state deviation/% Transient deviation/% Modulation/% Recovery time/s Frequency drop/% Steady-state frequency band/% Transient deviation/% Recovery time/s
≤±1 -15～+20 0.3 ≤4 ≤3 ≤0.5 -7～+10 ≤3
（Voltage Range）: Voltage range: no-load voltage regulation range is 95% - 105% of rated voltage.
