95/135/G128 Series Marine Diesel Generating Sets 50-275KW

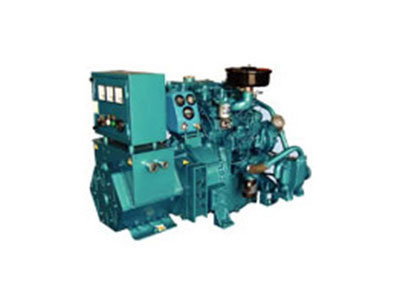

135 series marine diesel generating sets are composed of 135 marine engines produced by Shanghai New Power Automotive Technology Company Limited and Stamford or Marathon series brushless 3 phase generators.
The gensets possess closed cooling water system and protection features for high water and oil temperature, low oil pressure and over~speed. The rotor of generator is designed of non~salient pole type and provided damping windings and brushless THYRIPART excitation system.

Engine collection
fresh~sea water cooling system; heat exchange; Fresh, sea water pump; expansion tank; water cooled manifold
Above engine is made by Shanghai New Power Automotive Technology Company Limited. Dongfeng Brand. (Except 95)
Alternator is Stamford or Marathon made in China.

Features of MARINE DIESEL GENSET:
24V DC electric system with battery
control panel with speed, oil pressure, water temperature, emergency stop button
air cleaner

Captive 4~point mounting system with vibration isolator mounts. Structural steel skid with convenient 4~point lifting arrangement.
Engine protecting system: High speed, High water temperature, Low oil Pressure.

95/135/G128 SERIES MARINE DIESEL GENERATING SETS-50-275KW(50HZ,3 PHASES)
Gensel Model Prime power
(KW)
Current
(A)
Voltage
(V)
Engine model Engine power
(kw)
Rated speed Cyl. Nos Bore stroke Displace ment(L) Alternator OVERALL DIMENSION (L*W*H)mm NET WEIGHT KGS units per 20'
Marathon Stamford
CCFJ40J 40 72 400 4135Caf 58.8 1500 4 135*140 8 MP-H- 40-4 UCM224E 1840*769 *1310 1420 5
CCFJ50J 50 90 400 4135ACaf 73.5 1500 4 135*150 8.6 MP-H- 50-4 UCM224F 1840*769 *1310 1420 5
CCFJ64J 64 115 400 6135Caf 88.3 1500 6 135*140 12 MP-H- 64-4 UCM274C 2273*780 *1310 1890 4
CCFJ75J 75 135 400 6135ACaf 110.3 1500 6 135*150 12.9 MP-H- 75-4 UCM274D 2273*780 *1288 1890 4
CCFJ90J 90 162 400 6135JZCaf 140 1500 6 135*140 12 MP-H- 90-4 UCM274E 2380*780 *1264 1996 4
CCFJ100J 100 180 400 6135JZCaf 140 1500 6 135*140 12 MP-H- 100-4 UCM274E 2380*780 *1264 2140 4
CCFJ120J 130 217 400 6135JZLCaf 176 1500 6 135*140 12 MP-H- 120-4 UCM274G 2620*952 *1555 2200 2
CCFJ130J 130 235 400 6135JZLCaf 176 1500 6 135*140 12 MP-H- 130-4 UCM274H 2620*952 *1555 2200 2
CCFJ150J 150 271 400 G128ZLCaf1 200.5 1500 6 135*150 13 MP-H- 150-4 HCM434C 2652*825 *1470 2560 2
CCFJ180J 180 325 400 G128ZLCaf1 200.5 1500 6 135*150 13 MP-H- 180-4 HCM434D 2652*825 *1470 2560 2
CCFJ200J 200 361 400 G128ZLCaf2 236 1500 6 135*150 13 MP-H- 200-4 HCM434D 2652*825 *1470 2560 2
CCFJ250J 250 451 400 G128ZLCaf3 275 1500 6 135*150 13 MP-H- 250-4 HCM4D 2652*825 *1470 2560 2
