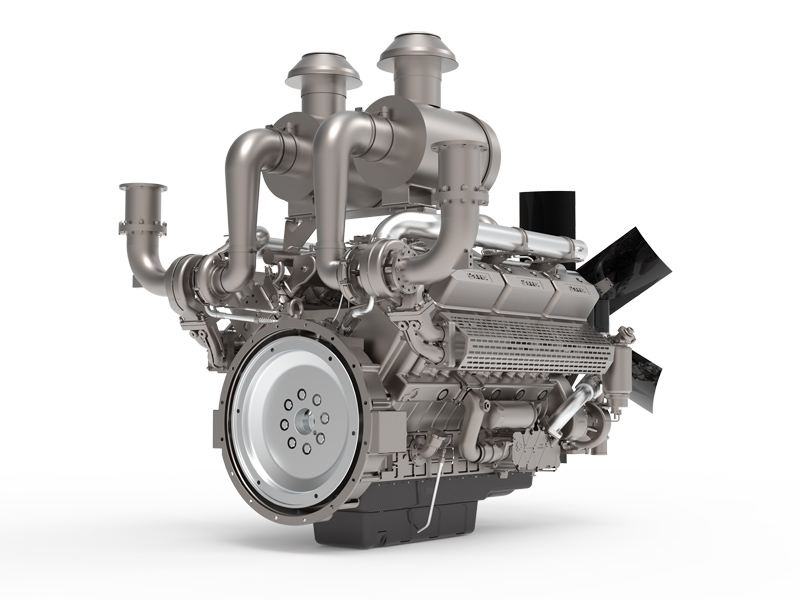

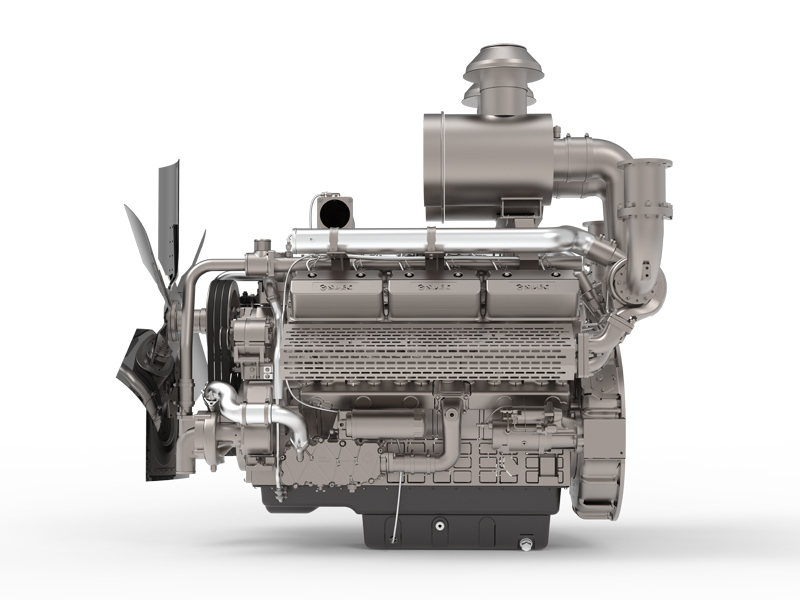

SC25G / SC27G Diesel Engine for Genset
SC25G / SC27G Diesel Engine for Genset
SC25G / SC27G Diesel Engine for Genset
SC25G / SC27G Diesel Engine for Genset
SC25G / SC27G Diesel Engine for Genset

SC25G / SC27G Diesel Engine for Genset

Description

The SC25/27G industrial diesel engine for commercial generators is a product featuring upgraded components on our 12V135 diesel engine for generator sets. The upgrades have resulted in improved reliability, durability, efficiency, vibration, and noise output. The stroke of the SC27G has been extended to 155mm. Most components of this series of engine can be used with the original engine models. It is the first choice for matching the power for 350-550kW generator sets and it is manufactured according to SAIC Motor manufacturing standards.

Outline dimensional drawing
SC25G / SC27G Diesel Engine for Genset L: 1930mm W: 1686mmH: 1872mm
Technical parameters
Engine Model
SC25G610D2 SC25G690D2 SC27G755D2 SC27G830D2
Engine Type
V-Line, Water-Cooled, Four-Stroke, Direct Injection, Two-Valve
Aspiration Type
Air-Air Intercooler
Number of Cylinders×Bore×Stroke mm 12×135×150 12×135×155
Cylinder Liner Type
Wet Liner
Total Displacement L 25.8 26.6
Speed Governing Rate % 0 ～ 5
Speed r/min 1500
Max. Power (Standby) kW 445 505 555 662
Min. BSFC g/kW.h 202
Exhaust Smoke FSN ≤2.0 ≤1.5
Coolant Capacity L 151
Oil Capacity L 65
Oil Consumption g/kW.h ≤0.4
Firing Order (From Free End)
1-12-5-8-3-10-6-7-2-11-4-9
Crankshaft Rotation Direction
Anticlockwise (Viewed from Flywheel End)
Emissions Level
TIER Ⅱ
Noise dB (A) 118
Net Weight kg 2080
Flywheel and Flywheel House
SAE14# & SAE1/2# SAE18# & SAE0#
Features
  • The integral crankshaft adopts non-quenched and tempered steel and all the sealing gaskets are improved so as to increase the reliability of the diesel engine.
  • The symmetric designs of dual pumps and dual oil pumps improve the cooling and lubricating capacities and reduce the water tank size. It is applicable to various environments with different ambient temperatures.
  • The exhaust pipe is changed into a two-stage assembly and the sealing structure is optimized, which reduces leakage probability. The air inlet pipe is changed as casting structure.
  • Redesigning the fuel pipeline resulted in improving layouts of other peripheral pipelines and air filters. With this protection design, the layout is reasonable and the appearance is more industrial.
  • A cracking connecting rod makes it convenient to maintain.
  • This series engine satisfies Off-Road China II emission standards.
