D Series Diesel Engine for Genset

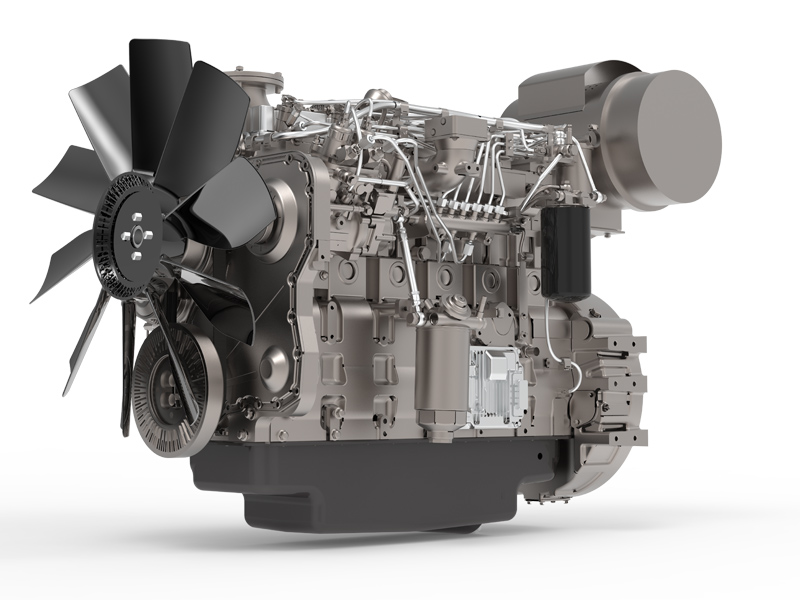

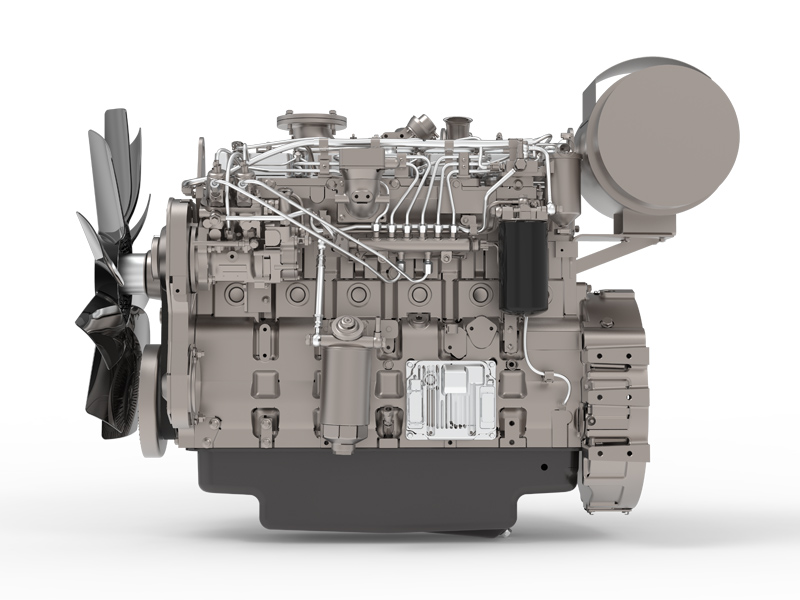

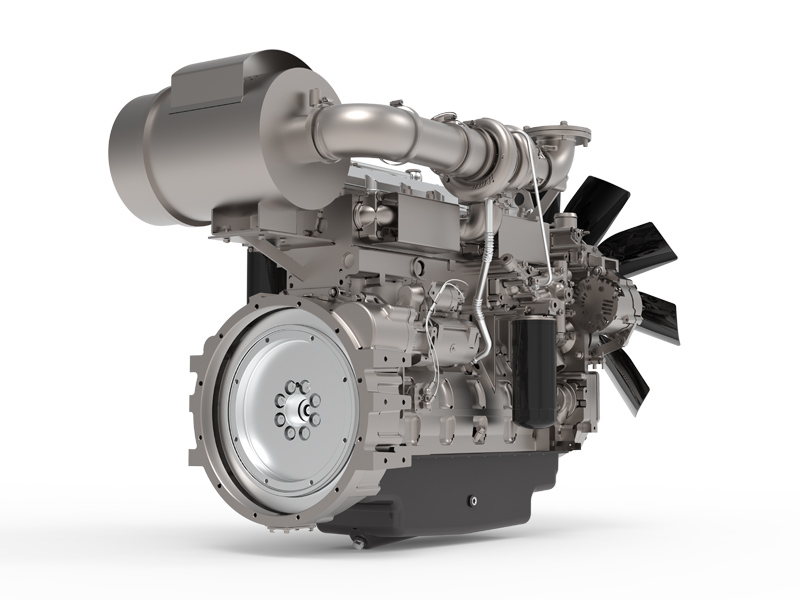

D Series Diesel Engine for Genset D Series Diesel Engine for Genset D Series Diesel Engine for Genset

D Series Diesel Engine for Genset

Description

The D series industrial diesel engine for commercial generator was designed as part of a joint operation between SDEC and Austria AVL. We produced a reinforced design and 4-valve upgrade in 2005 when we cooperate with The Southwest Research Institute (SwRI). All parts are designed and checked according to 295kW outputs and it has an applicable power range of 185-266kW with a large reliability margin. The engine provides good fuel economy and this is the most technically advanced engine in China. It has been selling well for over 20 years, with production of more than 1 million sets. This is the idle matching power for 185-308kW generator sets.

Request a Quote
  • Specifications
  • Features
  • Technical parameters
Model SC8D(280D2) SC9D(310-340D2) 6DAA8.9 (G31-G32) 6DAA8.9 (G33-G34)
Type In-Line Type, Water-Cooled, 4-Stroke, Direct Injection, 4 Valves
Aspiration Turbo & Intercooler Turbo & Intercooler Turbo & Intercooler Turbo & Intercooler
Number of Cylinders×Bore×Stroke (mm) 6x114x135 6x114x144 6x114x144 6x114x144
Cylinder Liner Type Wet Liner Wet Liner Wet Liner Wet Liner
Compression Ratio 18:01 18:1/16.5:1 18:01 16.5:1
Displacement (L) 8.3 8.9 8.9 8.9
Speed Governing Rate (%) ≤5(Electronic Control) ≤5(Electronic Control) ≤5(Electronic Control) ≤5(Electronic Control)
Rated Power (kW) 185 208-228 185-235 230-280
Rated Speed (rpm) 1500 1500 1500-1800 1500-1800
Standby Power (kW) 204 228-255 204-259 253-308
Min. Fuel Consumption
(g/kW.h)
200 198-200 192 192
Exhaust Smoke (FSN) ≤1 ≤1 ≤1 ≤1
Lube Oil Capacity (L) 15-19 15-19/22-25 15-19 22-25
Cooling System Capacity (L) 12 12 12 12
Engine Oil Consumption (g/kW.h) ≤0.3 ≤0.3 ≤0.3 ≤0.3
Emission Standards Stage II Stage II Stage III Stage III
Noise (dB-A) 105 105 105 105
Net Weight (kg) 740 900 740 900
Dimensions (L×W×H) (mm) 1472×762×1240 1529×762×1309 1408×762×1186 1493×762×1260
Flywheel housing/ Flywheel SAE2#&11.5# SAE2#&11.5# SAE2#&11.5# SAE2#&11.5#
  • Adopting four valves structure, high strength cylinder block and integral cylinder head design, the key components adopt international first-class brands, resulting high reliability and efficiency.
  • Following SAIC MOTOR manufacturing standard and ensured by the German Volkswagen engine quality control system, the engine is of high quality and good consistency.
  • The whole structure adopts integral parts design, so the parts number is 20% less than the traditional diesel engines, with simple structure and convenient maintenance.
  • Without intake air heating auxiliary device, the cold starting temperature is -10℃. And the starting temperature with auxiliary device is 30℃. The environmental adaptability is strong.
  • This engine meets Off-Road China II emission standard.
Typical Generator Capacity (kVA) Diesel Engine Model Engine Output (kW) Type
50Hz 60Hz 1500rpm 1800rpm Cylinder Flywheel & Housing Fuel System Emission
Prime
(PRP)
Standby
(ESP)
Prime
(PRP)
Standby
(ESP)
Prime Standby Prime Standby
200 225 / / SC9D280D2 185 204 / / L6 SAE 2#11.5# m-FIP+e-gov. CN II
225 250 / / SC9D310D2 208 228 / / L6 SAE 2#11.5 m-FIP+e-gov. CN II
250 275 / / SC9D340D2 228 255 / / L6 SAE 2#11.5# m-FIP+e-gov. CN II
200 225 225 250 6DTAA8.9-G21 185 204 205 226 L6 SAE 2#11.5# m-FIP+e-gov. CN II
225 250 250 275 6DTAA8.9-G24 208 228 228 250 L6 SAE 2#11.5# m-FIP+e-gov. CN II
250 275 275 300 6DTAA8.9-G23 230 253 255 282 L6 SAE 2#11.5# m-FIP+e-gov. CN II
200 225 225 250 6DTAA8.9-G31 185 204 205 226 L6 SAE 2#11.5# ECR CN III
225 250 250 275 6DTAA8.9-G32 208 228 235 259 L6 SAE 2#11.5# ECR CN III
250 275 275 320 6DTAA8.9-G33 230 253 255 282 L6 SAE 2#11.5# ECR CN III
275 320 320 350 6DTAA8.9-G34 245 253 268 282 L6 SAE 2#11.5# ECR CN III

Notes: m-FIP: mechanical fuel injection pump; e-gov: electronic governor
