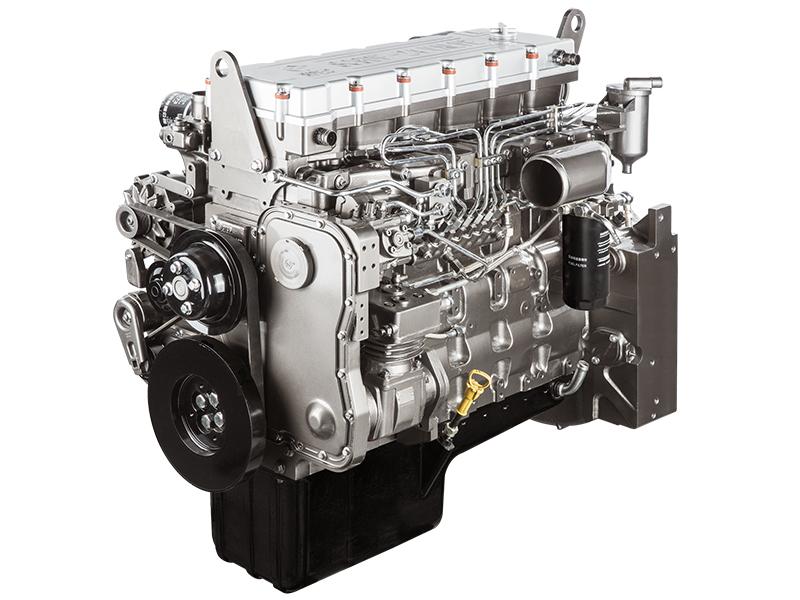

The SDEC D series diesel engine features a high reliability, good fuel economy and fast transient load response. It is an outstanding representative of recently designed and leading technical indexes among domestic proven engines. With three optional engines of 5.3, 9.3 and 8.8L, the applicable power ranges from 132 to 375 Ps, making it the preferred power for medium sized passenger buses and city busses.
The prototype of D series is jointly designed with the Austrian company AVL to adapt to Chinese oil quality and user habits. In 2005, SDEC cooperated with the American SwRI to carry out reinforcing design and 4-valve upgrade following North American heavy-duty diesel engine standards. Meeting China IV and China V emission standards, this series engine has been selling well for 20 years, with currently more than 1 million sets in circulation.
Outline dimensional drawing

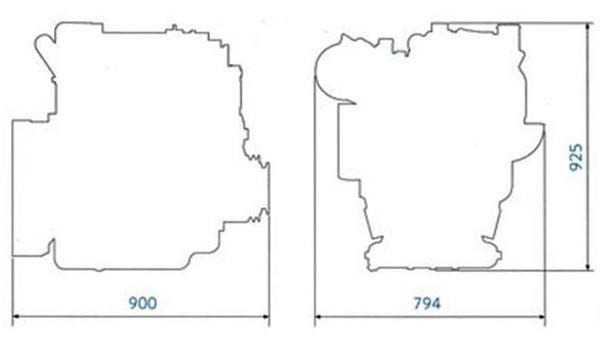

SC5D

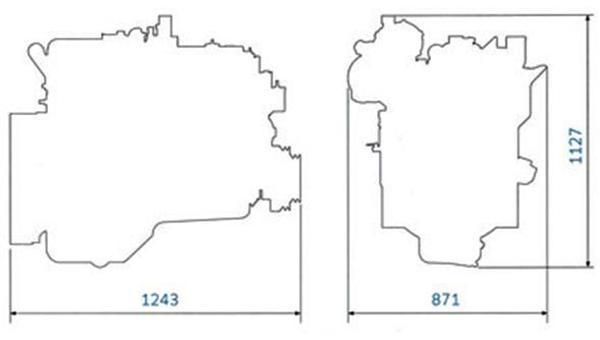

SC9D
Technical parameters
Diesel Engine
Engine Model
Displacement (L)
Aspiration
Rated Power
Peak Torque
Emissions Level
kW
ps
r/min
N.m
r/min
5DK
SC5DK180
5.3
TA
132
180
2300
660
1400
China IV
5DK
SC5DK200
5.3
TA
147
200
2300
730
1400
China IV
8DK
SC8DK230
8.3
TA
170
230
2200
900
1400
China IV
8DK
SC8DK240
8.3
TA
177
241
2200
960
1400
China IV
8DK
SC8DK250
8.3
TA
184
250
2200
1000
1400
China IV
8DK
SC8DK260
8.3
TA
192
260
2200
1100
1400
China IV
8DK
SC8DK280
8.3
TA
206
280
2200
1160
1400
China IV
9DK
SC9DK280
8.8
TA
206
280
2200
1160
1400
China IV
9DK
SC9DK310
8.8
TA
228
310
2200
1250
1400
China IV
9DF
SC9DF240
8.8
TA
177
240
2200
970
1400
China IV, China V
9DF
SC9DF260
8.8
TA
192
260
2200
1100
1400
China IV, China V
9DF
SC9DF280
8.8
TA
206
280
2200
1160
1400
China IV, China V
9DF
SC9DF300
8.8
TA
221
300
2200
1250
1400
China IV, China V
9DF
SC9DF320
8.8
TA
235
320
2200
1350
1400
China IV, China V
9DF
SC9DF340
8.8
TA
251
340
2200
1450
1400
China IV, China V
Natural Gas Engine
Engine Model
Displacement (L)
Aspiration
Rated Power
Peak Torque
Emissions Level
kW
ps
r/min
N.m
r/min
SOT
SC5DT180
5.3
TA
132
180
2300
650
1500
China V
8DT
SC8DT230
8.3
TA
170
230
2000
830
1300
China V
8DT
SC8DT250
8.3
TA
184
250
2000
920
1300
China V
9DT
SC9DT280
8.8
TA
206
280
2000
1120
1300
China V
9DT
SC9DT300
8.8
TA
221
300
2000
1150
1300
China V
9DT
SC9DT320
8.8
TA
235
320
2000
1200
1300
China V
Features
D Series
Technical advantages and features
Customer value
Fuel system
It adopts Japan Denso third generation of electronic control system with a maximum injection pressure of 1800bar. The DLC coated fuel injector of Denso patented technology can reduce the corrosion and wear of oil nozzle. Multiple injection can be realized in sequential working conditions to ensure uniform atomization and full combustion. This engine meets China IV and China V emission standards.
The oil consumption is reduced by 10-15%, with a long service life.
Gas system
It uses a single point injection gas supply mode and two control strategies: lean burning and mixed burning (lean burning + equivalent burning). The controller (ECU), sensor, electronic throttle, sparking coil, spark plug and other key components are all from internationally known brands, and meet Chinese V emission standards.
This system is advanced and reliable.
Aspiration method
With optional 2-valve and 4-valve products, an optimized combustion chamber and swirl ratio airway, the turbocharger is selected based on various working conditions, power and torque requirements. This achieves a higher air intake efficiency and improves the combustion efficiency. With its high power density and fast transient load, the maximum torque reserve is up to 40%.
With a low fuel consumption, the operation cost is low. It has a fast transient load response, strong power and outstanding adaptability to working conditions.
Design features
In cooperation with AVL and SwRI, this product meets North American heavy-duty diesel engine standards. With a high strength cylinder head and engine block, 4-valve structure and 180bar peak pressure, all the parts are designed as 295kW. Using an integral design, the parts are 20% less than the regular diesel engines. Compared to same power engines available on the market, it has a simpler and smaller structure. The 217Ps in-cylinder brake power is an option offered to meet better auxiliary braking functions.
This engine has an excellent reliability and low downtimes. The overall arrangement is flexible. A high power in-cylinder brake results in a high driving safety.
Reliability features
Designed following 295kW heavy-duty diesel engine designs, it has a high reliability margin. With advanced machining and assembly lines, it is controlled by an MES system. By referencing the SPS system guarantee in German Volkswagen manufacturing standards, the product has a better consistency. With advanced and reliable international first-class accessories, this engine has been selling well for 10 years as the preferred power of commercial vehicles.
It is advanced, mainstream, reliable and reassuring.
Matching adaptability
With an optional displacement of 8.3L and 8.8L and optional engine of diesel and natural gas, the power ranges from 105kW to 275kW. Electronically controlled common rail and natural gas systems are developed and manufactured on one platform. The electronic controlled engine supports GPS, cruising and other functions. Without an auxiliary air intake heating device, the cold starting temperature is -15℃. According to the assembly configuration and actual operating conditions, the engine and assembly are conducted for matching optimization and customization. Various configurations for the flywheel, flywheel house, engine, air compressor, steering pump and other peripheral parts are provided to choose from. There are also different structures and types to choose from for the PT0 and oil pan.
This engine has a wide application range and good environmental adaptability. It has an optimized power performance and economy.
